What Is a Gasket Strip in Aluminum Cabinet Frame Profiles?

When customers purchase cabinet frame systems for wardrobes, kitchen cabinets, or glass doors, they often focus on the visible structure first. However, one small accessory has a major influence on the final performance of the entire frame system: the gasket strip.

In our factory, we consider gasket strips an essential component rather than a simple accessory. A properly matched gasket directly affects glass stability, installation quality, door movement, sealing performance, and even the lifespan of the furniture system. Whether the project uses 4mm, 5mm, or 6mm glass, choosing the correct gasket is just as important as selecting the frame structure itself.

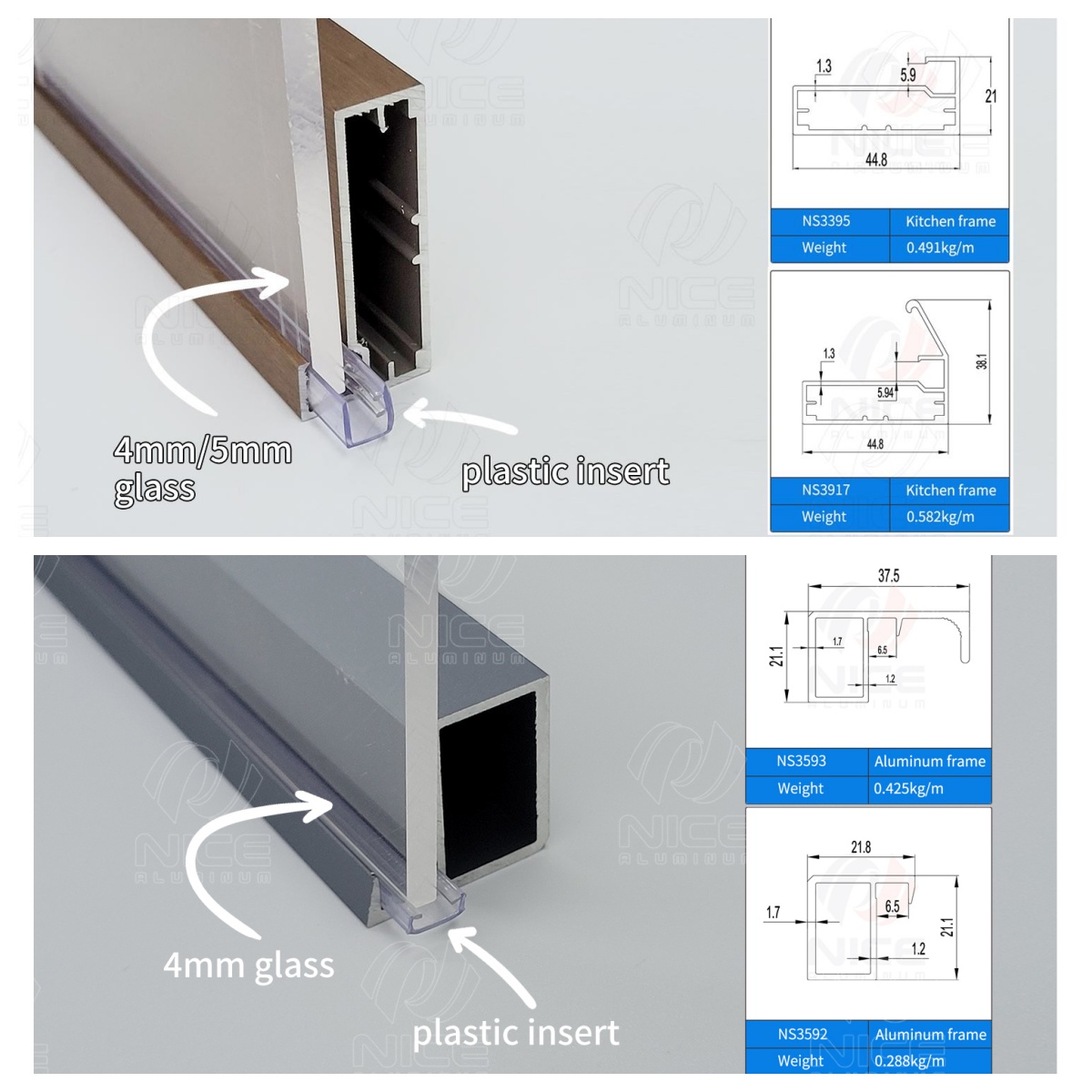

Different Cabinet Frame Sizes Require Different Gasket Systems

Aluminum Cabinet Frame Profiles with different frame widths cannot use the same gasket specifications because the groove dimensions and structural designs are completely different. In modern furniture systems, 20mm slim cabinet frame profiles and 45mm cabinet frame profiles usually require different gasket structures to achieve proper glass holding performance.

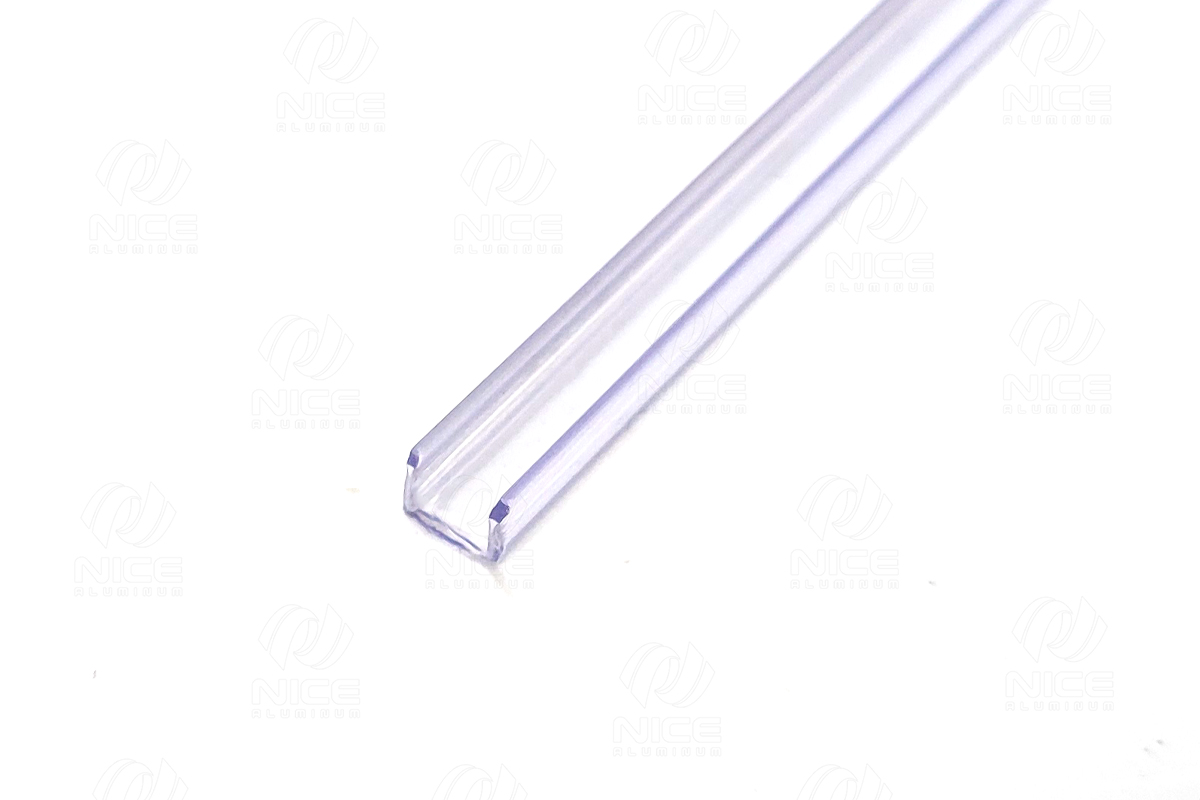

A 20mm slim frame system is designed for minimalist visual effects, which means the groove space inside the profile is much narrower. These systems normally use thinner and softer gasket materials to maintain clean installation lines while still providing enough pressure to secure the glass panel.

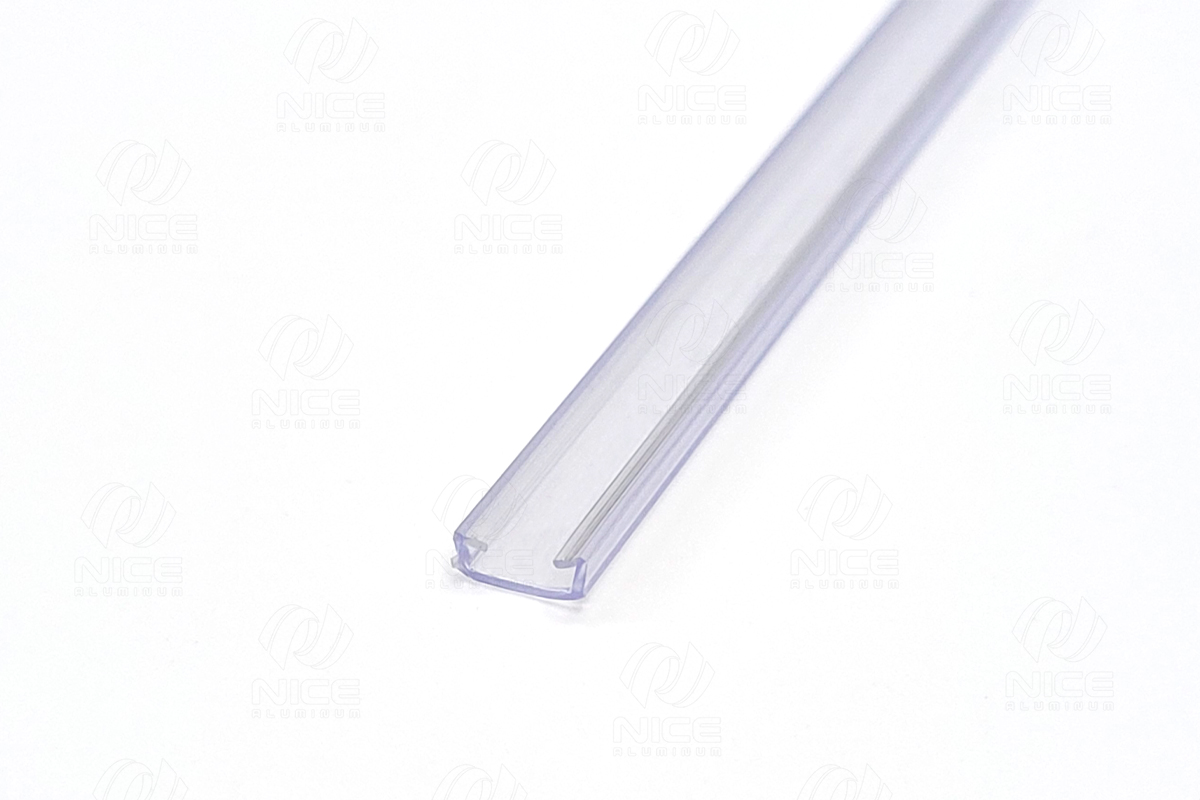

A 45mm cabinet frame system has a wider structural design and typically supports larger glass panels or heavier door applications. Because the groove depth and installation pressure are different, these profiles often require thicker gasket structures with stronger compression performance and better vibration resistance.

In our factory, we always match the gasket according to the actual cabinet frame profile structure instead of using a universal solution. By testing the groove size, glass thickness, and installation pressure together, we help customers achieve smoother assembly, better sealing performance, and more stable long-term use.

A Stable Glass Installation Depends on the Right Gasket

Aluminum Cabinet Frame Profiles are designed with precise groove structures that require matching gasket dimensions to secure the glass firmly inside the frame. Without a properly fitted gasket, the glass may shift slightly during opening and closing, eventually creating noise, instability, or a lower-quality user experience.

In our production process, we always test the gasket together with the glass thickness and groove size before mass production begins. Different glass panels require different compression levels and elasticity. A gasket suitable for 4mm glass may not provide enough holding force for 6mm tempered glass.

This is why professional cabinet frame suppliers usually provide gasket recommendations together with the frame system instead of treating them as separate products.

Glass Protection Is One of the Most Important Functions

Aluminum Cabinet Frame Profiles create a rigid structural system, but glass should never directly contact the metal surface during daily use. Repeated vibration, transportation impact, and frequent door movement can eventually damage the glass edges if no protective layer exists between the glass and the frame.

The gasket acts as a soft buffer zone that absorbs pressure and reduces vibration. This becomes especially important for slim frame glass doors and large wardrobe panels where the glass area is much larger than traditional cabinet systems.

Many of our customers exporting modern furniture systems prefer EPDM or silicone gaskets because they maintain elasticity over long periods and provide better aging resistance in different environments.

Clean Visual Details Depend on the Gasket System

Aluminum Cabinet Frame Profiles are increasingly designed with narrow visible edges and minimalist aesthetics, which means even small installation gaps become highly noticeable. A correctly selected gasket helps create a cleaner transition between the glass panel and the frame while reducing visible spacing.

In many furniture projects, gasket color selection also affects the final appearance. Black gaskets are commonly paired with matte black frames, while transparent or gray versions are preferred for champagne, silver, or brushed finishes.

High-end cabinet systems often rely on these small visual details to create a more refined and integrated appearance.

Different Materials Perform Differently

Gasket Material	Main Features	Recommended Applications
PVC	Cost-effective, easy to install, suitable for standard furniture projects	Kitchen cabinets, wardrobe doors, standard cabinet systems
EPDM	Excellent elasticity, strong aging resistance, long service life	Premium furniture systems, export projects, large glass doors
Silicone	Soft texture, moisture resistant, stable in humid environments	Bathroom cabinets, vanity systems, humid-area furniture
Rubber	Good vibration absorption and impact protection	Glass cabinet doors, sliding systems, anti-vibration applications

Matching the Gasket to the Groove Structure Is Critical

Aluminum Cabinet Frame Profiles are manufactured with different groove widths, groove depths, and structural tolerances, which means gasket compatibility cannot be treated as universal. Even small dimensional differences can affect installation quality and holding performance.

A gasket that is too loose may allow the glass to move inside the frame, while an oversized gasket may create assembly difficulties or excessive installation pressure. For this reason, we usually test the gasket together with the actual frame sample and glass thickness before confirming production specifications.

Providing a matched solution helps furniture manufacturers reduce installation problems and improve consistency during assembly.

We Provide Complete Frame and Gasket Solutions

Aluminum Cabinet Frame Profiles are only one part of a complete cabinet door system, which is why we help customers match suitable gasket materials, dimensions, and glass specifications during project development.

Our factory supports customized groove structures, multiple surface finishes, and gasket matching solutions based on the customer’s furniture application. By combining the correct frame design with the proper gasket system, we help manufacturers improve stability, installation efficiency, and finished product quality.

This integrated approach is especially important for modern minimalist furniture systems where precision and appearance standards continue to increase.
